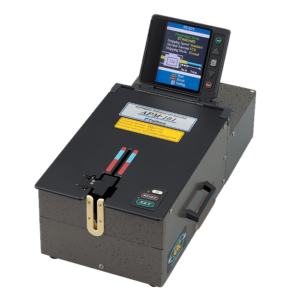

APM-101/102 Automatic Preparation Machine

The APM-101/102 perform all the steps required to prepare optical fibers before splicing – automatically and with high consistency. This includes stripping the fiber without degrading fiber quality, cleaning fiber with alcohol to remove coating residue, and cleaving consistently at a right angle to the fiber axis.

หมวดหมู่: , ป้ายกำกับ:


1. Easy operation

Just place the Fiber Holder and press the “Set” key, stripping, cleaning, and cleaving the fiber automatically.


Fiber set


Stripping and cleaving



2. Easy reference

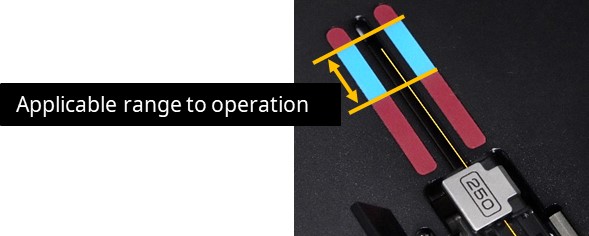

The blue colored reference zone clarifies the fiber length needed to operate properly.


Model APM-101 APM-102
Cladding diameter 125μm
Coating diameter 250μm
Fiber holder FH-100-250 FH-70-250
Standard package
 Item  Model  Qty
Optical fiber automatic
preparation machine
APM-101 or APM-102 1pc
AC adapter ADC-15 1pc
AC power cord ACC-xx 01 : Japan, 02 : USA,03 : UK, 04 : EU,
05 : Australia
Alcohol container ALC-01 1pc
Alcohol tube ALT-01 3pc
Air pressure regulator REG-01 1pc
Hexagonal wrench (1.5mm) HEX-01 1pc
Hexagonal wrench (1.27mm) HEX-03 1pc
Silicon grease SIG-01 1pc
Instruction manual M-APM101 / 102-E 1pc
Cleave test report 1pc
 Item  Model
Coating strip blade CSB-250
Cleave blade CB-04A
Fiber holder for APM-101 FH-100-250, FH-100-250-EV
Fiber holder for APM-102 FH-70-250
